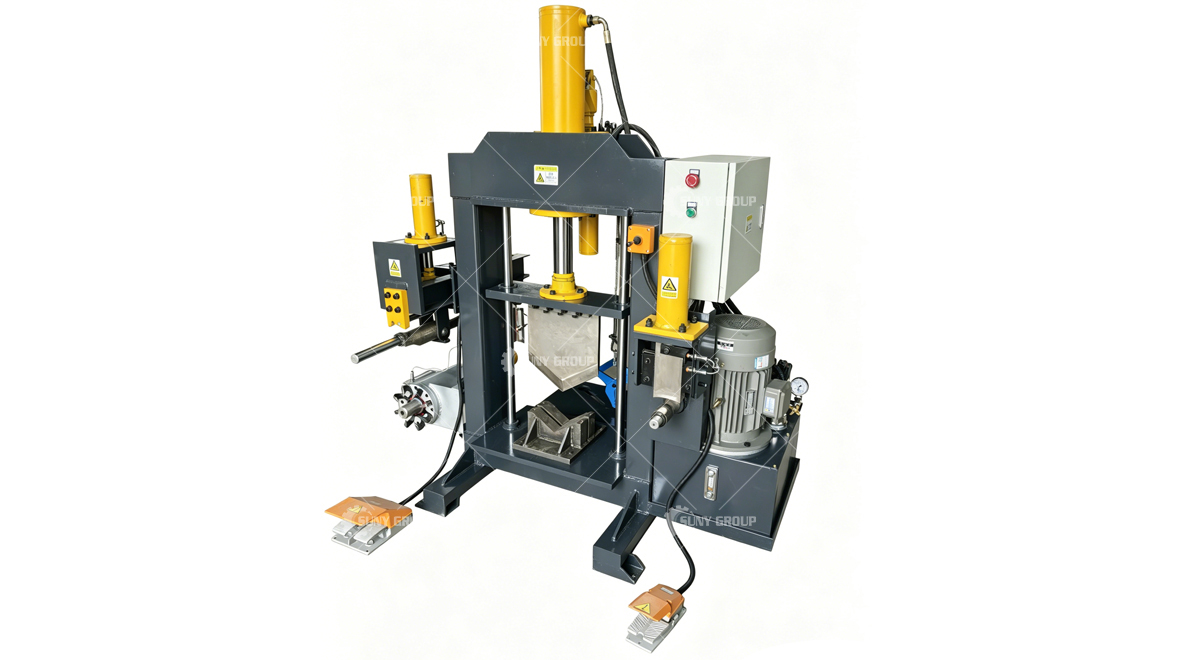

5-in-1 Motor Copper Recycling Machine
Used for extracting copper from scrap electric motors efficiently in metal recycling and recovery industries.
The 5-in-1 Motor Copper Recycling Machine is a compact recycling solution designed for processing scrap electric motors and recovering valuable copper materials. It integrates crushing, cutting, separating, and sorting functions into one system. The machine offers high efficiency, stable operation, low labor costs, and high metal recovery rates, making it suitable for modern metal recycling industries and waste processing plants.
The 5-in-1 Motor Recycling Machine is an advanced solution designed for fast and efficient copper recovery from scrap electric motors. Combining cutting, splitting, pulling, stripping, and separating functions in one compact system, the machine greatly improves recycling efficiency while reducing manual labor costs. It is widely used in scrap metal recycling plants, motor dismantling workshops, and waste processing industries.

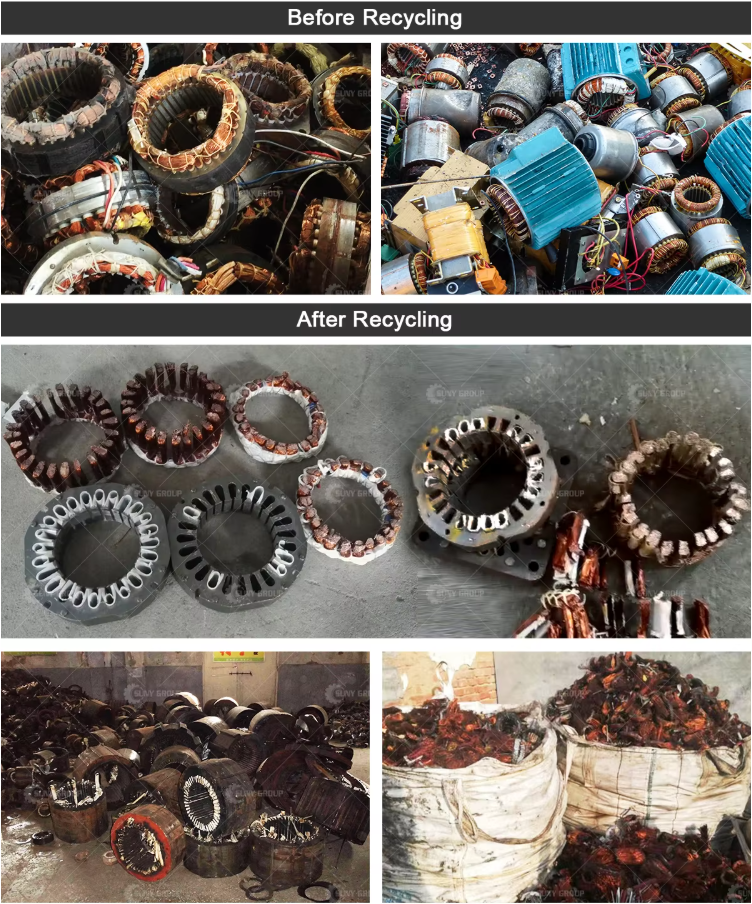

This machine can process various types of electric motors, compressors, and stators with high productivity and stable performance. The powerful cutting and splitting system quickly opens motor housings, while the copper pulling unit efficiently removes valuable copper windings with minimal damage and material loss.
Featuring easy operation, durable structure, energy-saving performance, and high copper recovery rates, the 5-in-1 Motor Recycling Machine helps recycling businesses increase profits and improve resource utilization. It is an ideal choice for modern metal recycling operations focused on productivity, environmental protection, and sustainable copper recovery solutions.
Highlights at a glance
1.5 Functions in 1 Machine: One machine with five functions, fully disassemble motor stator copper wires efficiently.
2.High-Pressure And Powerful: High tonnage hydraulic system, strong and stable power output.
3.Labor-Saving And Efficient: Foot switch control, simple operation, high working efficiency.
4.Durable And Wear-Resistant: Thick steel body & heat-treated molds, solid oil cylinder & pure copper motor, durable and low failure rate.
5.Hydraulic pushing heavy-duty pulling system:Integral copper stripping, high purity copper, higher recycling income.
Technical Parameters
|
Name
|
Scrap Motor Stator Disassembly Separation Machine
|
|
Power Supply Voltage
|
380V 50Hz
|
|
Motor Power
|
5.5KW
|
|
System Pressure
|
25Mpa
|
|
Oil Tank Capacity
|
80L
|
|
Control Method
|
Electric Control
|
|
Cutter Tonnage
|
30 tons
|
|
Cylinder Stroke
|
400mm
|
|
Blade Size
|
250*320mm
|
|
Internal Net Width
|
450mm
|
|
Cut Stroke
|
100mm
|
|
Wire Gripping and Removal Range
|
Inner Diameter φ50mm – Outer Diameter φ120mm
|
|
Top Wire Removal Range
|
Inner Diameter φ50mm – Outer Diameter φ300mm
|
|
Top Wire Stroke
|
200mm
|
|
Wire Pulling and Removal Range
|
Outer Diameter φ300-φ600mm (Heating required for thicker varnish)
|
|
Wire Pulling Stroke
|
600mm
|
|
Overall Dimensions
|
1400*1300*1700mm
|
|
Weight
|
650kg
|
