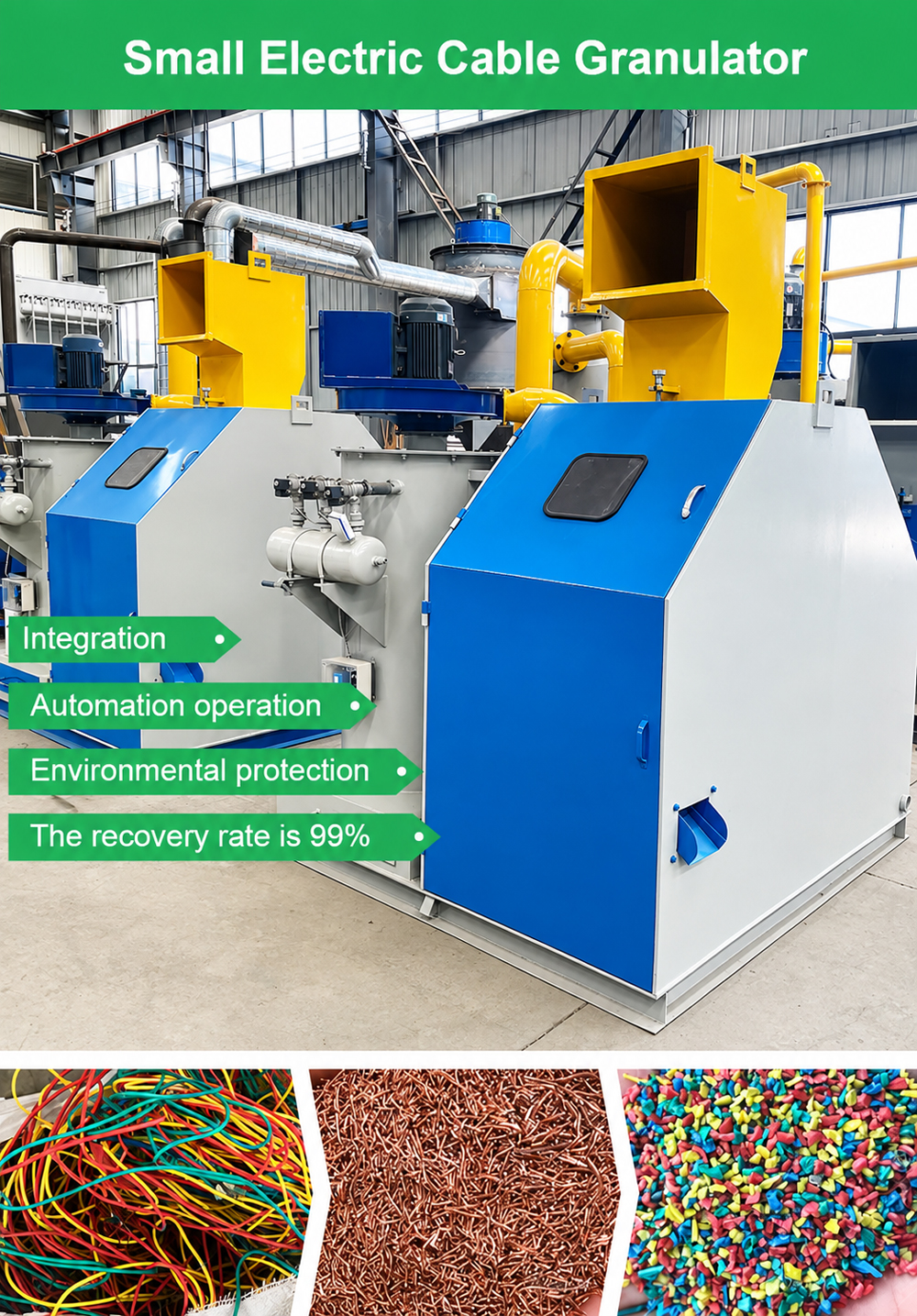

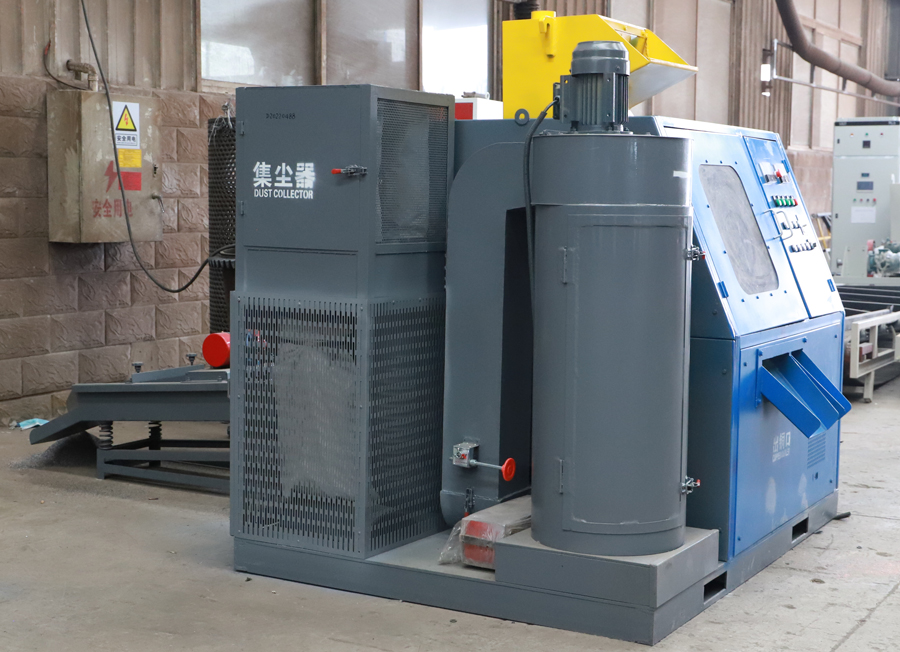

100kg/h Copper Wire Granulator
For recycling waste copper wires, cables, and electrical wires into clean, reusable copper granules.
100kg/h Copper Wire Granulator is a compact recycling machine designed to process waste copper wires and cables efficiently. It uses cutting, crushing, screening, and air separation technologies to separate copper from plastic insulation. With a capacity of approximately 100 kg/h, the machine produces clean copper granules and plastic particles for further recycling and reuse.
100kg/h Copper Wire Granulator is a compact recycling machine designed for processing waste copper wires and cables. Its main structure includes a feeding hopper, crusher, granulator, vibrating screen, air separator, conveyor, motor, and control cabinet. The equipment adopts a compact layout, making it suitable for small and medium-sized copper recycling operations. Different configurations can be selected according to wire diameter, material composition, and required processing capacity.
This machine is suitable for various types of scrap copper wires and cables, including electrical wires, communication cables, automotive wiring harnesses, household wires, and other insulated copper cables. It can process wires with plastic or PVC insulation and separate the valuable copper from the non-metallic covering. The material should be free from large foreign objects before entering the granulator to maintain stable operation and reduce wear.
During operation, waste copper wire enters the feeding system and is first cut or crushed into smaller pieces. The material then enters the granulating chamber, where high-speed rotating blades further reduce the wire into small particles. The crushed mixture passes through a vibrating screen for size control and then enters the air separation system. Because copper and plastic have different densities, airflow separates the heavier copper granules from the lighter plastic insulation.
The 100kg/h Copper Wire Granulator offers efficient separation, compact design, simple operation, and convenient maintenance. It can produce relatively clean copper granules and separated plastic, helping improve the recycling value of waste cables. Its moderate capacity is suitable for businesses that do not require a large-scale processing line. The machine can also be integrated with conveyors, dust collection systems, and additional separation equipment to create a complete copper wire recycling system.

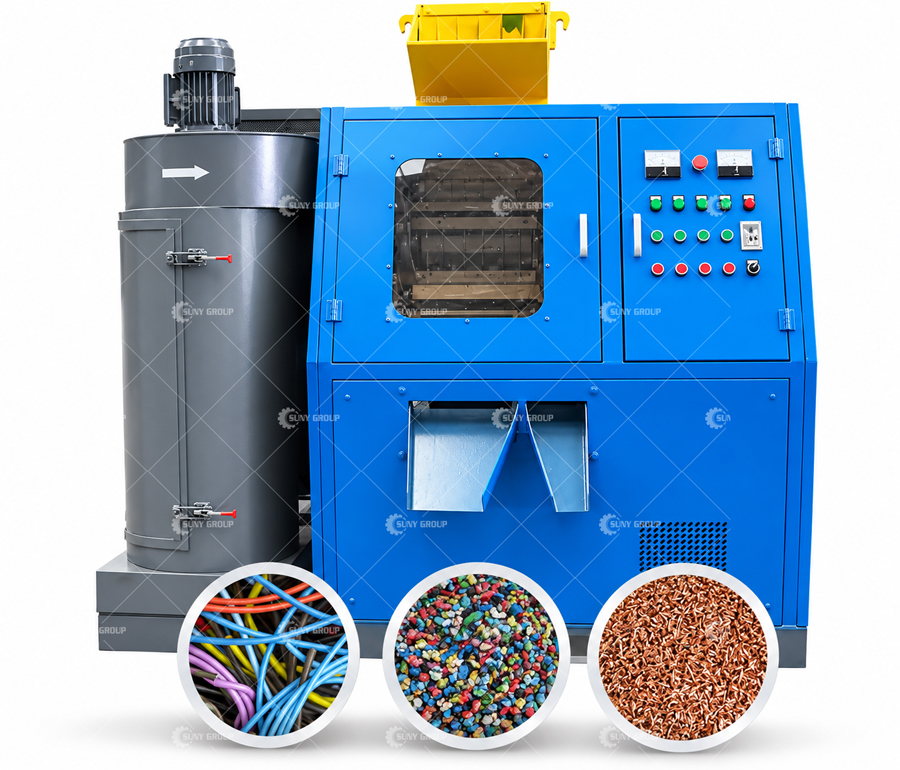

Small Cable Granulator Machine Application
Small Cable Granulator Machine is mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into copper and PVC, the applicable range of the wires diameter from 0.3 mm to 20 mm, such as automobile electrical wires, car bottom wires, motorcycle electric wires, computer copper wires and communication cable, etc.
SUITABLE FOR ALL KINDS OF WIRES（Diameter: 0.3-20mm）
Parameters
|
Model
|
Capacity
|
Total Power
|
Volt
|
Dimension
|
Weight
|
Wire Diameter
|
|
R-TMJ-100
|
100kg/h
|
29KW
|
220V,50HZ
|
1.85*1.85*2.4m
|
2100KG
|
0.3-20mm
|
