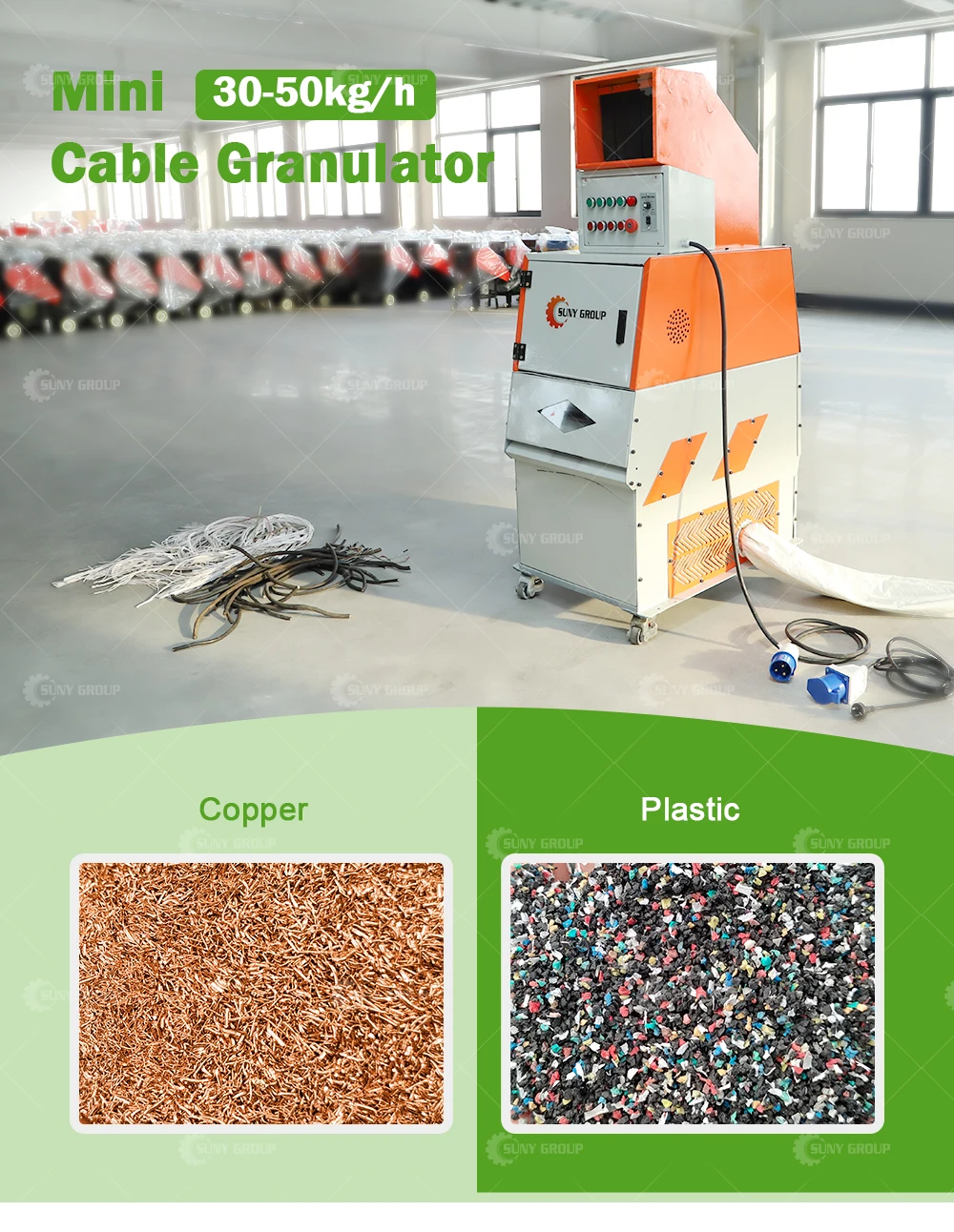

Mini Copper Wire Granulator Machine
Used for recycling scrap copper wires efficiently and separating plastic insulation materials in small workshops
The Mini Copper Wire Granulator Machine is designed for efficiently recycling scrap copper wires and cables. It crushes and separates copper from plastic insulation with high accuracy, producing clean copper granules. Compact, energy-saving, and easy to operate, it is ideal for small recycling workshops and cable processing businesses.
The Mini Copper Wire Granulator Machine is a compact and efficient recycling solution designed for processing scrap copper wires and cables into valuable raw materials. It is especially suitable for small recycling plants, electrical workshops, and startup metal recovery businesses that require stable performance with limited investment and space. The machine adopts an integrated structural design, combining feeding, crushing, separation, and dust collection systems into one compact unit, which makes installation simple and operation convenient.
In terms of structure, the machine mainly consists of a feeding system, a crusher, an air separation unit, a dust removal system, and an intelligent control cabinet. The feeding system ensures continuous and stable material input. The crusher uses high-strength rotary blades to cut scrap wires into small granules, effectively liberating copper from plastic insulation. After crushing, the mixed particles enter the air separation system, where copper and plastic are separated according to their different densities through airflow and vibration technology. The dust collection system reduces environmental pollution and improves working conditions, while the control cabinet allows operators to easily monitor and adjust machine performance.
The working process of the Mini Copper Wire Granulator Machine is fully automated and efficient. Scrap wires are first fed into the crusher, where they are cut into uniform particles. The crushed mixture then moves to the separation system, where copper granules and plastic particles are automatically divided and collected separately. The entire process is continuous, stable, and designed to achieve high copper purity and recovery rates, often reaching up to 99%.
This machine offers several significant advantages, including compact size, low energy consumption, easy maintenance, and strong adaptability to different wire types such as household cables, communication wires, and automotive harnesses. It provides an economical and environmentally friendly solution for copper recycling, helping businesses reduce waste, increase profitability, and promote sustainable resource utilization.
Parameters
| Model | Power(KW) | Voltage(v) | Processing range (mm) | Processing capacity (m/min) | Dimensions(cm) | Weight(kg) | Packing size(cm) |
| ZY-30-50 | 3.9 | 110/220 | Below 25mm | 30-50kg/h | 56*85*153 | 264 | Wooden box 60*89*157 |
Mini Copper Wire Granulator Machine – Advantages
1.High Copper Recovery Rate – Advanced crushing and air separation technology ensures copper purity up to 99%, maximizing material value.
2.Compact Structure – Integrated design occupies small floor space, making it ideal for workshops and small recycling plants.
3.Low Energy Consumption – Energy-efficient motor system reduces operating costs and improves overall profitability.
4.Easy Operation – Intelligent control system allows simple start-up, monitoring, and maintenance with minimal labor requirements.
5.Environmental Protection – Equipped with a dust collection system to reduce pollution and maintain a clean working environment.
6.Wide Application Range – Suitable for processing various scrap wires, including household cables, communication wires, and automotive wiring harnesses.
