Copper Scrap Shredder Machine
Industrial machine designed for efficient copper scrap shredding and volume reduction purposes in recycling facilities
The Copper Scrap Shredder Machine is designed to process various types of copper waste, including wires, pipes, and sheets. It features high-torque blades that efficiently shred materials into smaller pieces for easier recycling, transportation, and further processing, improving recovery efficiency and reducing overall operational costs.
The Copper Scrap Shredder Machine is a powerful and efficient piece of equipment designed to process various types of copper waste into smaller, manageable pieces for recycling and further refinement. It is widely used in metal recycling plants, scrap yards, and industrial processing facilities where large volumes of copper materials need to be reduced in size quickly and efficiently. By improving material handling and preparation, this machine plays a key role in enhancing the overall efficiency of copper recycling operations.

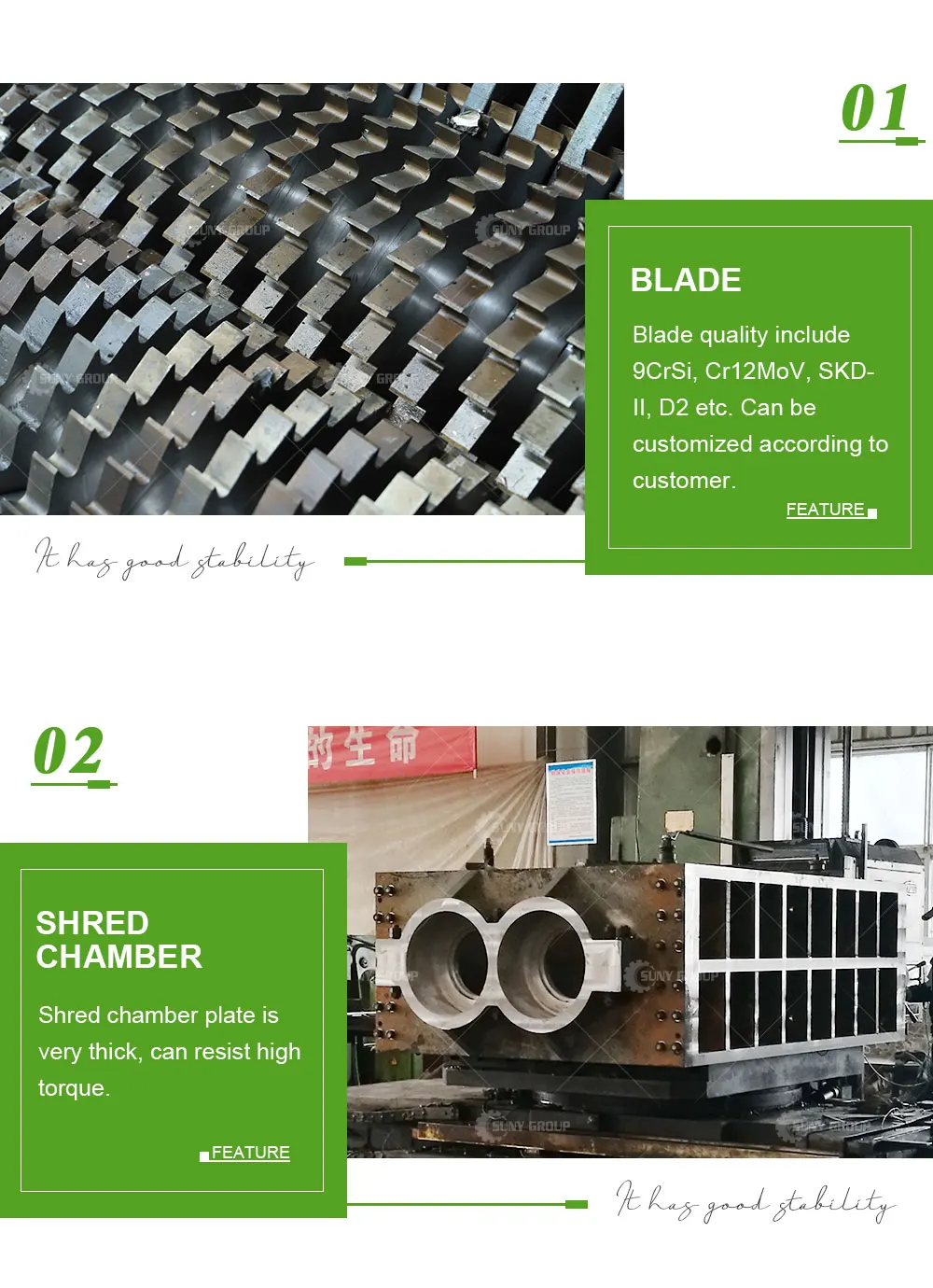

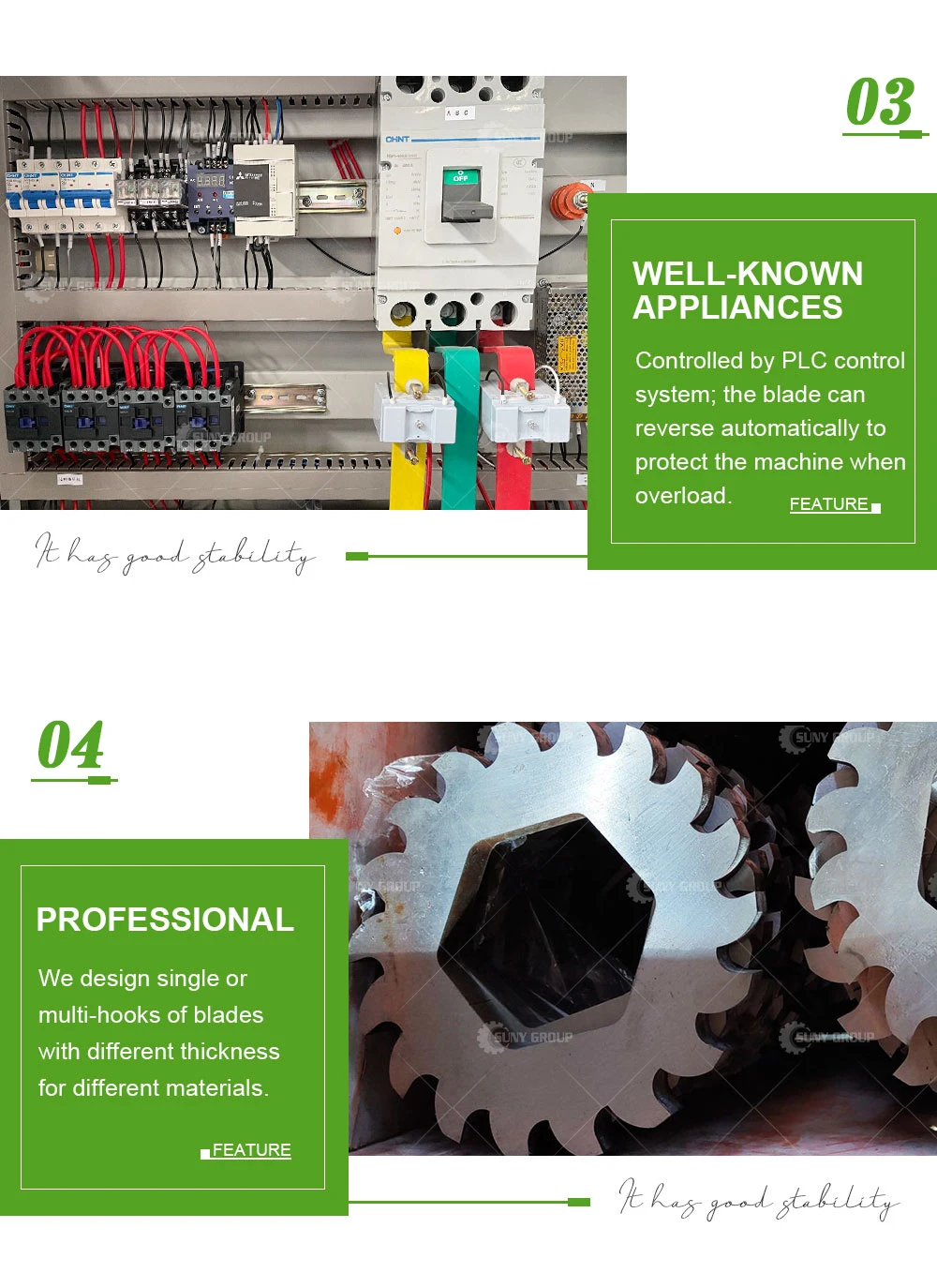

In terms of structure, the Copper Scrap Shredder Machine typically consists of a heavy-duty frame, a high-torque drive system, a shredding chamber equipped with durable alloy steel blades, a feeding system, and an intelligent control cabinet. The robust frame ensures stability during operation, even under high load conditions. The shredding chamber is designed with precisely arranged rotating and fixed blades that work together to tear, cut, and shear copper materials effectively. The drive system provides strong torque at low speed, which is ideal for processing tough copper scrap such as thick cables, pipes, and sheets. Advanced control systems allow operators to monitor performance and ensure safe, stable operation.
The working process is straightforward and efficient. Copper scrap is fed into the shredding chamber through a conveyor or manual feeding system. Once inside, the rotating blades grip and shred the material into smaller fragments. These shredded pieces are then discharged through a screen or outlet, depending on the required output size. The reduced material size makes subsequent processes such as separation, melting, or granulation more efficient.
The Copper Scrap Shredder Machine offers several advantages, including high processing capacity, strong adaptability to different copper forms, low noise, and easy maintenance. It reduces transportation costs by minimizing material volume and improves recycling efficiency by preparing scrap for downstream processing. This machine is suitable for recycling copper wires, pipes, radiators, and industrial copper waste, making it an essential solution for modern copper recovery and sustainable resource management.
Technical parameters
|
Model
|
ZY-D600
|
ZY-D1000
|
ZY-D1200
|
ZY-D1500
|
ZY-D1900
|
ZY-D2600
|
|
Motor Power
|
11*2 Kw
|
30*2 Kw
|
45*2 Kw
|
55*2 Kw
|
90*2 Kw
|
160*2 Kw
|
|
Capacity
|
2-6 T/H
|
3-8 T/H
|
5-10 T/H
|
8-18 T/H
|
10-25 T/H
|
25-60 T/H
|
|
Blade Number
|
34 Pieces
|
34 Pieces
|
30 Pieces
|
38 Pieces
|
34 Pieces
|
25 Pieces
|
|
Input OpeningSize
(mm)
|
950*700
|
1200*1000
|
1500*1200
|
2000*1500
|
2500*2000
|
3000*2500
|
|
Dimension
L/W/H(m)
|
2.6*0.9*1.8
|
3.6*1.5*22
|
4.6*1.8*2.6
|
5.2*2.0*2.6
|
6.2*2.5*2.8
|
8.2*4.0*4.3
|
|
Weight
|
3T
|
5T
|
8T
|
13 T
|
18 T
|
36 T
|
